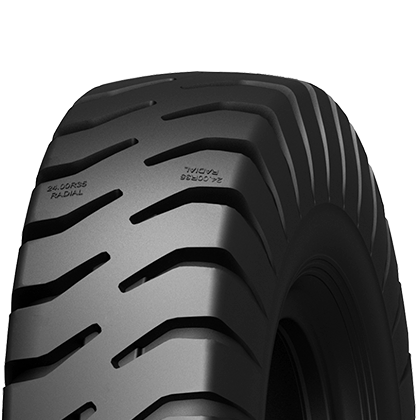

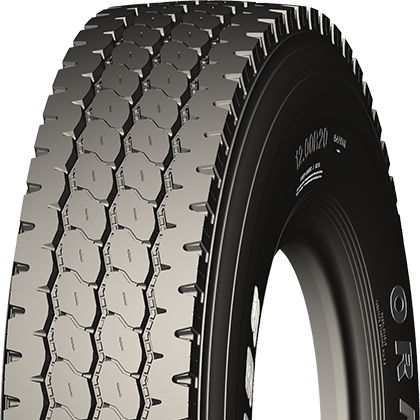

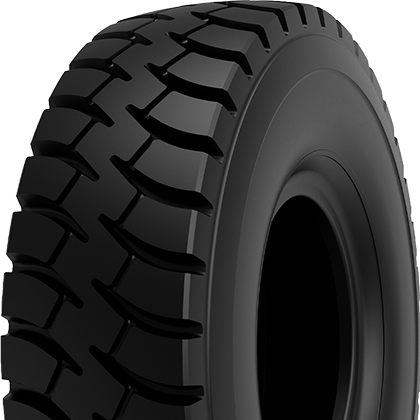

CB919
Benefits and Features

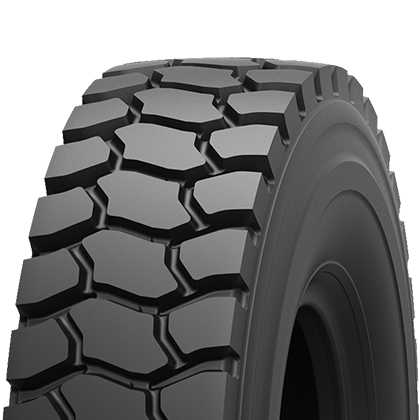

Aggressive lug design with large block at tread center designed for mining, rock and quarry operations
Wide tread and special tread compounds resist chipping, chunking, and tearing
Stone rejector platform prevents trapped stones from punching deeper and piecing belt
| Size | LR/PR | Service index | Tread Depth (mm) | Standard Rim | Overall Diameter (mm) | Section Width (mm) | Max. Load Capacity at Cold Inflation Pressure | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Single | Dual | |||||||||||||
| (kg) | (lbs) | (kPa) | (psi) | (kg) | (lbs) | (kPa) | (psi) | |||||||
| 12.00R24 | L/20 | 160/157B | 32.0 | 8.5 | 1238 | 315 | 4500 | 9920 | 900 | 131 | 4125 | 9090 | 900 | 131 |
| 12.00R20 | M/22 | 158/155B | 25.5 | 8.5 | 1136 | 315 | 4250 | 9370 | 970 | 141 | 3875 | 8540 | 970 | 141 |
| 12R22.5 | J/18 | 152/149B | 23.5 | 9.00 | 1096 | 300 | 3550 | 7830 | 930 | 135 | 3250 | 7160 | 930 | 135 |
| 11.00R20 | J/18 | 152/149B | 25.5 | 8.0 | 1096 | 293 | 3550 | 7825 | 930 | 135 | 3250 | 7165 | 930 | 135 |
◆THIS PRODUCT IS USING IN THE MINING AREA ONLY.
*Reserves the rights of final interpretation and modification;
 |
 |
 |
 |
 |
