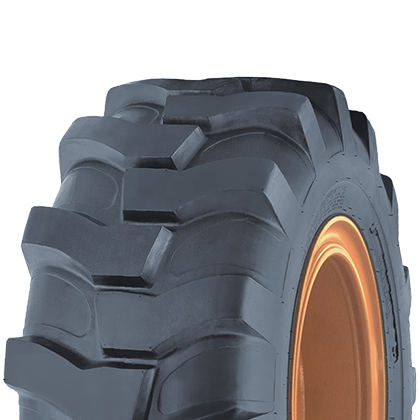

LS25
| Size | TRA Code | Ply Rating | LUG# | Tread Depth (mm) | Standard Rim | Overall Diameter (mm) | Section Width (mm) | Max. Load Capacity at Cold Inflation Pressure | TT/TL | |
|---|---|---|---|---|---|---|---|---|---|---|
| (kg) | (kPa) | |||||||||
| 23.1-26 | LS-2 | 16 | 17 | 55.0 | DW20A | 1560 | 587 | 4450 | 240 | TL |
| 30.5L-32 | LS-2 | 26 | 16 | 55.0 | DW27 | 1847 | 775 | 7100 | 280 | TL |
*Reserves the rights of final interpretation and modification;
 |
 |
 |
 |
 |
