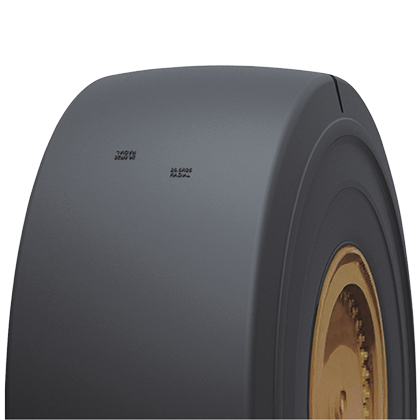

SM05
| Size | TRA Code | Ply Rating | Standard Rim | Tread Depth (mm) | Overall Diameter (mm) | Section Width (mm) | Max. Load Capacity (kg) | Cold Inflation Pressure (kPa) | TT/TL |
|---|---|---|---|---|---|---|---|---|---|
| 10.00-20 | L-5S | 14 | 7.5 | 40.0 | 1055 | 278 | 4695 | 690 | TT |
| 12.00-24 | L-5S | 20 | 8.5 | 50.0 | 1275 | 315 | 6900 | 825 | TT |
| 14.00-24 | L-5S | 28 | 10 | 65.0 | 1370 | 375 | 14100 | 1000 | TT |
| 17.50-25 | L-S5 | 24 | 14.00/1.5 | 68.0 | 1400 | 445 | 8850 | 650 | TL |
| 18.00-25 | L-5S | 32 | 13.00/2.5 | 90.0 | 1675 | 500 | 15000 | 750 | TL |
| 26.5-25 | L-5S | 36 | 22.00/3.0 | 96.0 | 1800 | 675 | 18300 | 625 | TL |
*Reserves the rights of final interpretation and modification;
 |
 |
 |
 |
 |
